Copper Terminal Crimping Pliers Set with Assorted Ring Terminals - 60 pcs

$57.99 USD

~~$104.99 USD~~ $57.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color asshown

Quantity

Specification

Shipping Limitations:Unlimited
Dimensions:15.75 in. * 5.91 in. * 2.37 in.
Weight:2.87 lbs
Available Ship to:France,Germany
Details

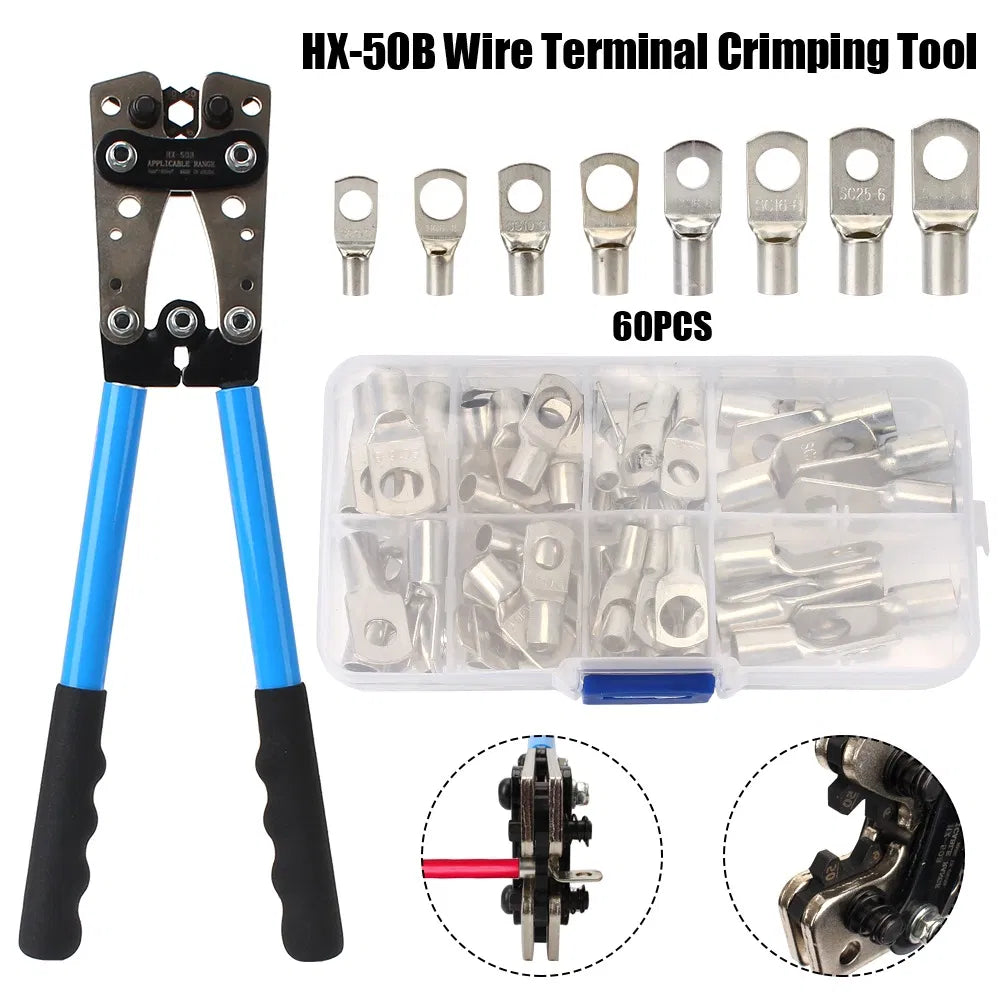

HX-50B Crimping Plier Kit 60pcs Auto Copper Ring Terminals Battery Terminal Wire Crimp Connector Crimping Pliers

Product Name: HX-50B Crimping Plier Kit 60pcs Auto Copper Ring Terminals Battery Terminal Wire Crimp Connector Crimping Pliers

Features:

- Ensure crimping precision, keeping the wire tightly crimped with the ferrule terminal.

- HX-50B Crimping Pliers have a long handle for more comfortable use.

- The crimping pliers are sturdy and of high quality, making them an easy-to-carry crimping tool.

- SC tinned peephole copper terminals are used to connect copper core cables to the copper ends of electrical equipment.

- Electrolytic tinning ensures excellent corrosion resistance while minimizing the resistance of the electrical contact.

Long-term operating temperature range: -55℃ to 150℃, with good conductivity and safety.

- Crimping tool range: 6-50 mm².

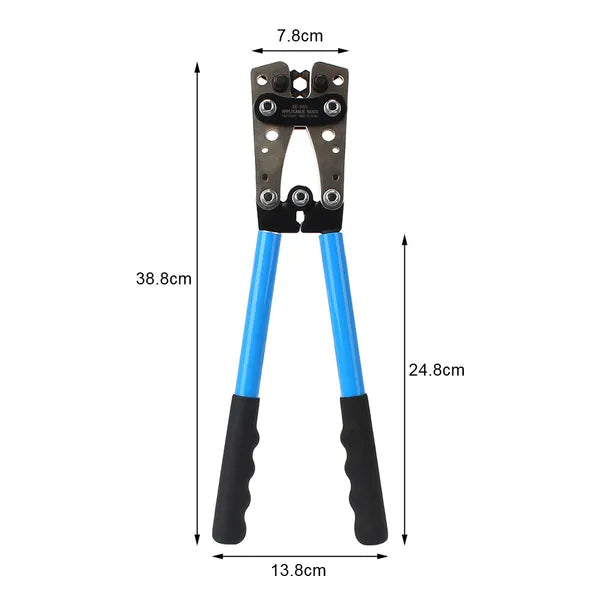

HX-50B Pliers Specifications:

- Material: Metal

- Clamp Length: Approx. 390 mm

- Crimp Width: Approx. 14.2 cm

- Crimp Thickness: Approx. 4.2 cm

- Crimp Adjustment Levels: 6/10/16/25/35/50 mm²

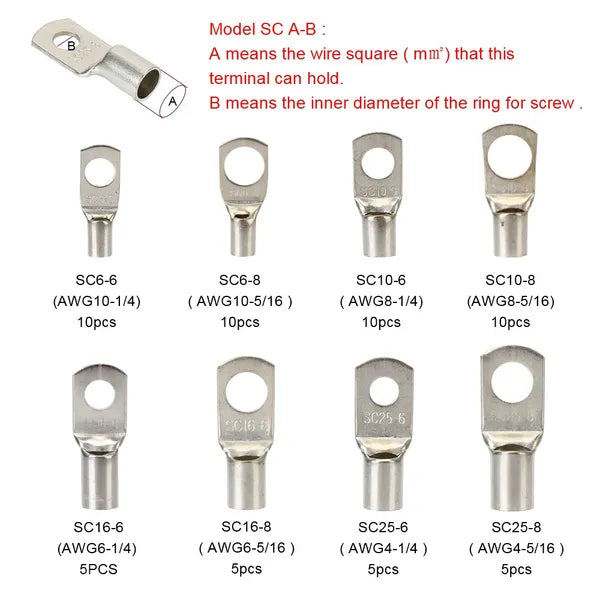

60Pcs Copper Ring Terminals Sizes and Quantity:

- Material: Tin Plated Copper

- SC6-6[10 PCS] Cable diameter: 6 mm², Screw hole diameter: 6 mm

- SC6-8[10 PCS] Cable diameter: 6 mm², Screw hole diameter: 8 mm

- SC10-6[10 PCS] Cable diameter: 10 mm², Screw hole diameter: 6 mm

- SC10-8[10 PCS] Cable diameter: 10 mm², Screw hole diameter: 8 mm

- SC16-6[5 PCS] Cable diameter: 16 mm², Screw hole diameter: 6 mm

- SC16-8[5 PCS] Cable diameter: 16 mm², Screw hole diameter: 8 mm

- SC25-6[5 PCS] Cable diameter: 25 mm², Screw hole diameter: 6 mm

- SC25-8[5 PCS] Cable diameter: 25 mm², Screw hole diameter: 8 mm

Note:

- All dimensions are measured manually and may have measurement errors.

Packaging Includes:

1 × 60pcs SC Terminals/HX-50B Pliers
