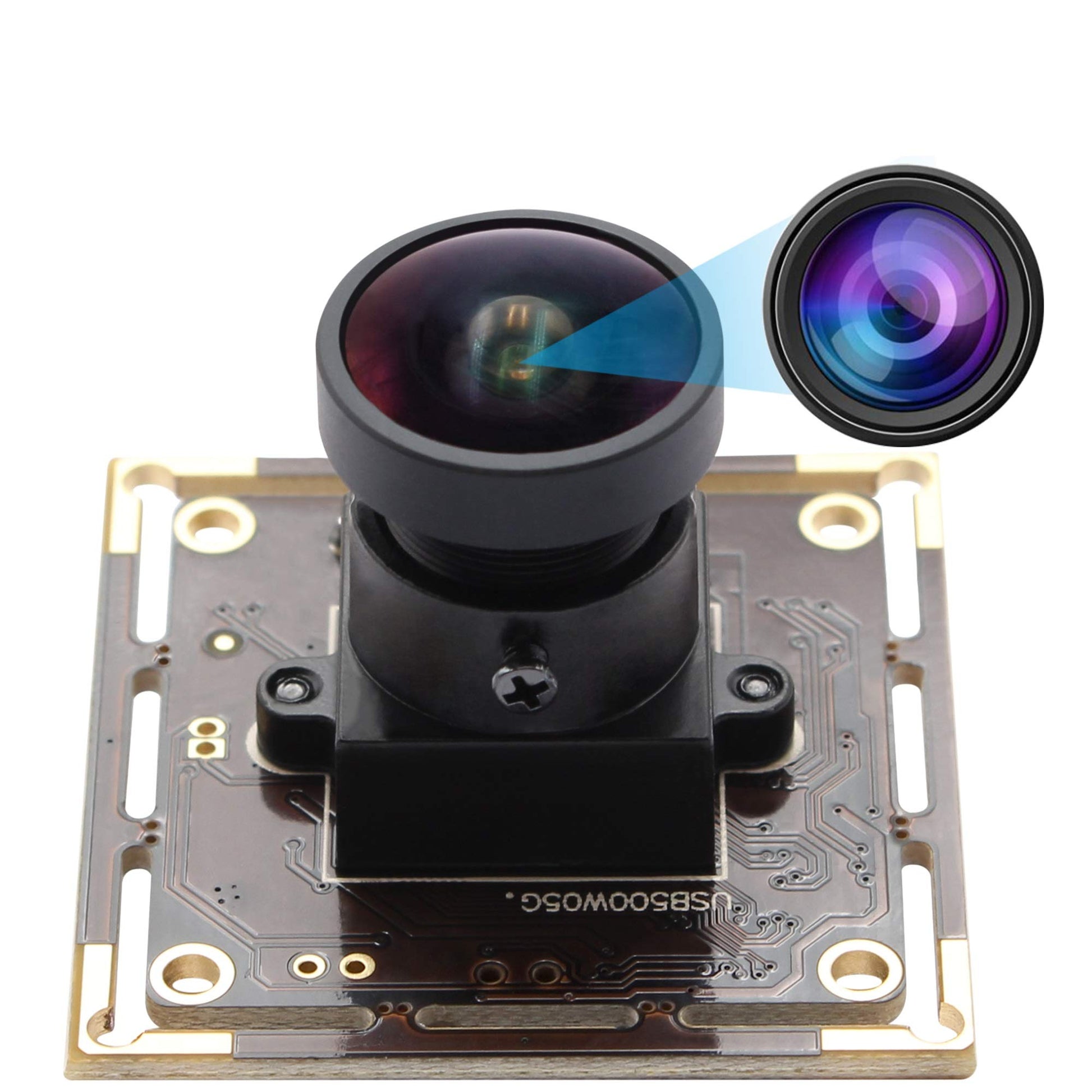

5MP HD 1944P Webcam 170 Degree Fisheye USB Camera Module with Aptina 1/2.5 MI5100 CMOS Sensor Webcamera Mini Industrial Web Cam,Plug&Play Support USB 2.0 OTG UVC

Brand: Camera USB

Color: USB Camera Module

Features:

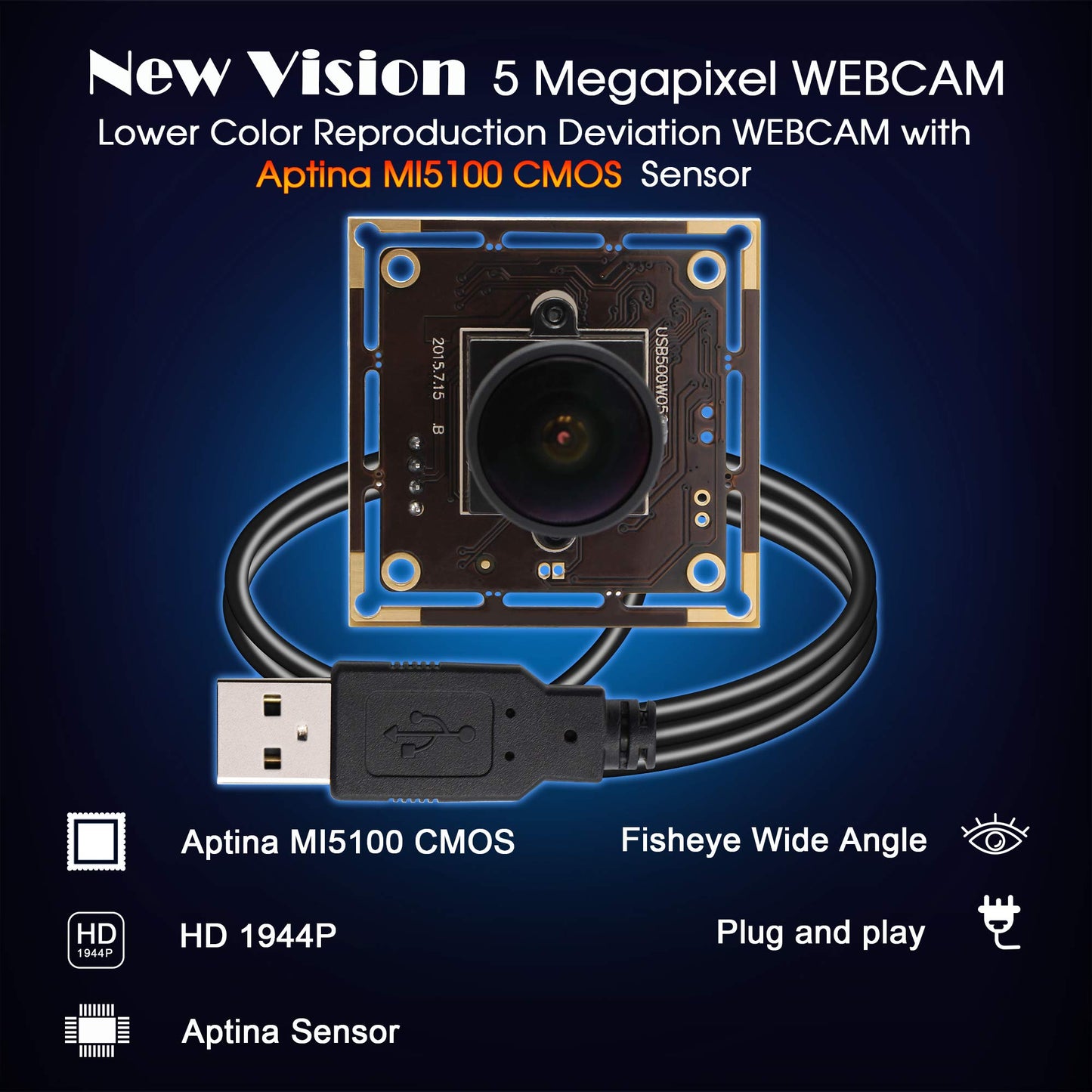

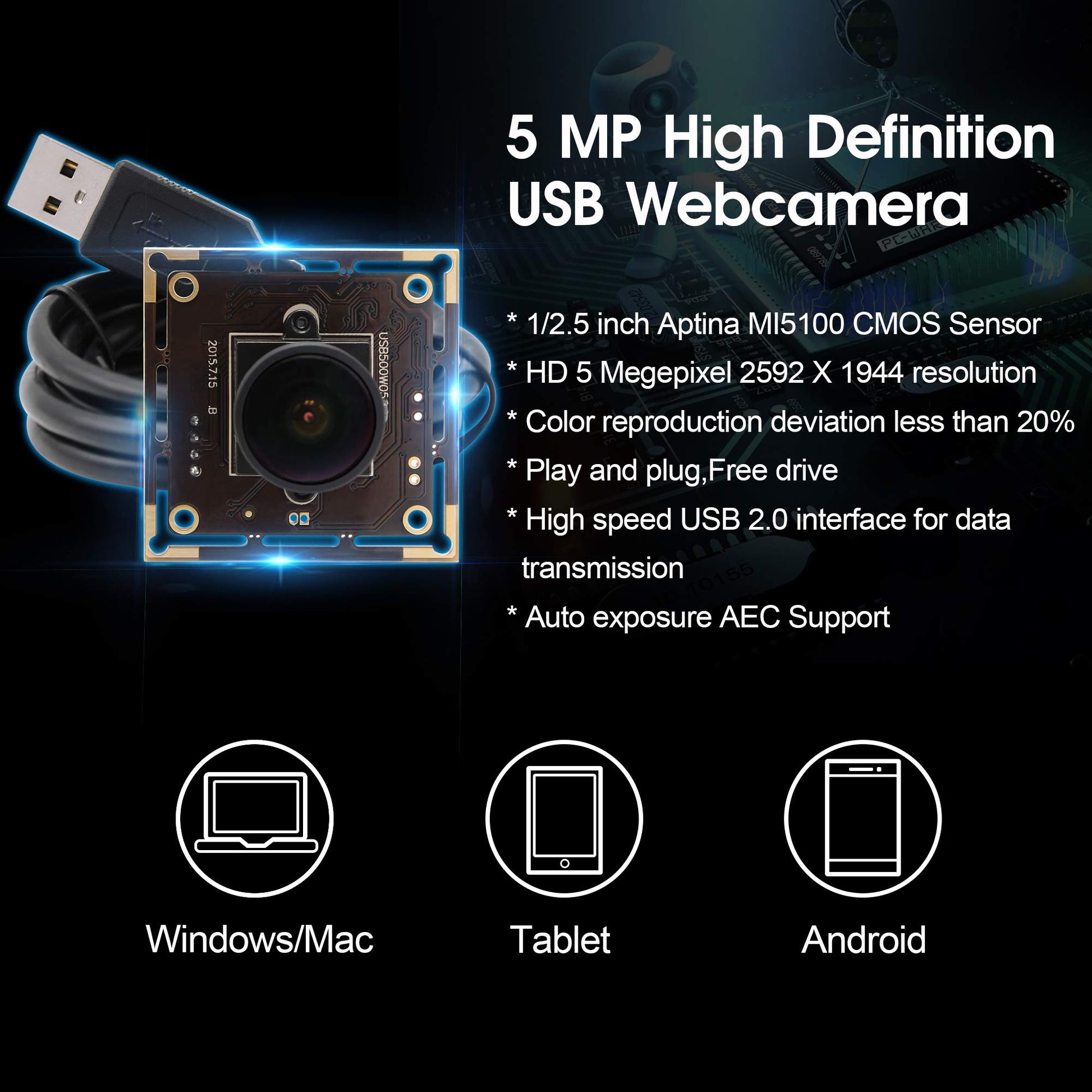

• Excellent Quality Image Aptina Top Sensor： USB camera 5MP webcam use 1/2.5 inch Aptina MI5100 CMOS Sensor,Color reproduction deviation less than 20%. Web camera is the high standard in terms of image quality and sensitivity performance, camera module mini industrial web cam is perfect for high leval video system for personal or industrial
• High Speed USB 2.0 OTG：High speed 2.0 USB port 5 megapixel usb camera support HD pixels： 1280x720@30fps/1920x 1080@ 15fps/2592x1944@ 15fps，Max. Resolution :2592(H) X 1944(V). Mini webcam use high pixel technology for sharp image and accurate color reproduction. Usb with camera module web cams is good to use for high leval products image intergation or housekeeping
• Plug and Play：Usb camera suport OTG 2.0,Free drive,plug and play directly installation anywhere for android,linux,windows pc system, just plug camera into computer,phone or tablet USB port and running the software can make video display and recording work. Test Software: Camerfi used for Android ,Montinon eye OS used for Raspberry Pi ,Amcap usedfor Windows
• Wide Applicatons：5MP usb camera mini webcam with wide angle 170 degree lens can widely used at home or office security, industrial or innovation video image system,best for Video Systems, monitoring of ATM machine, medical machine, Kiosk, PC, house

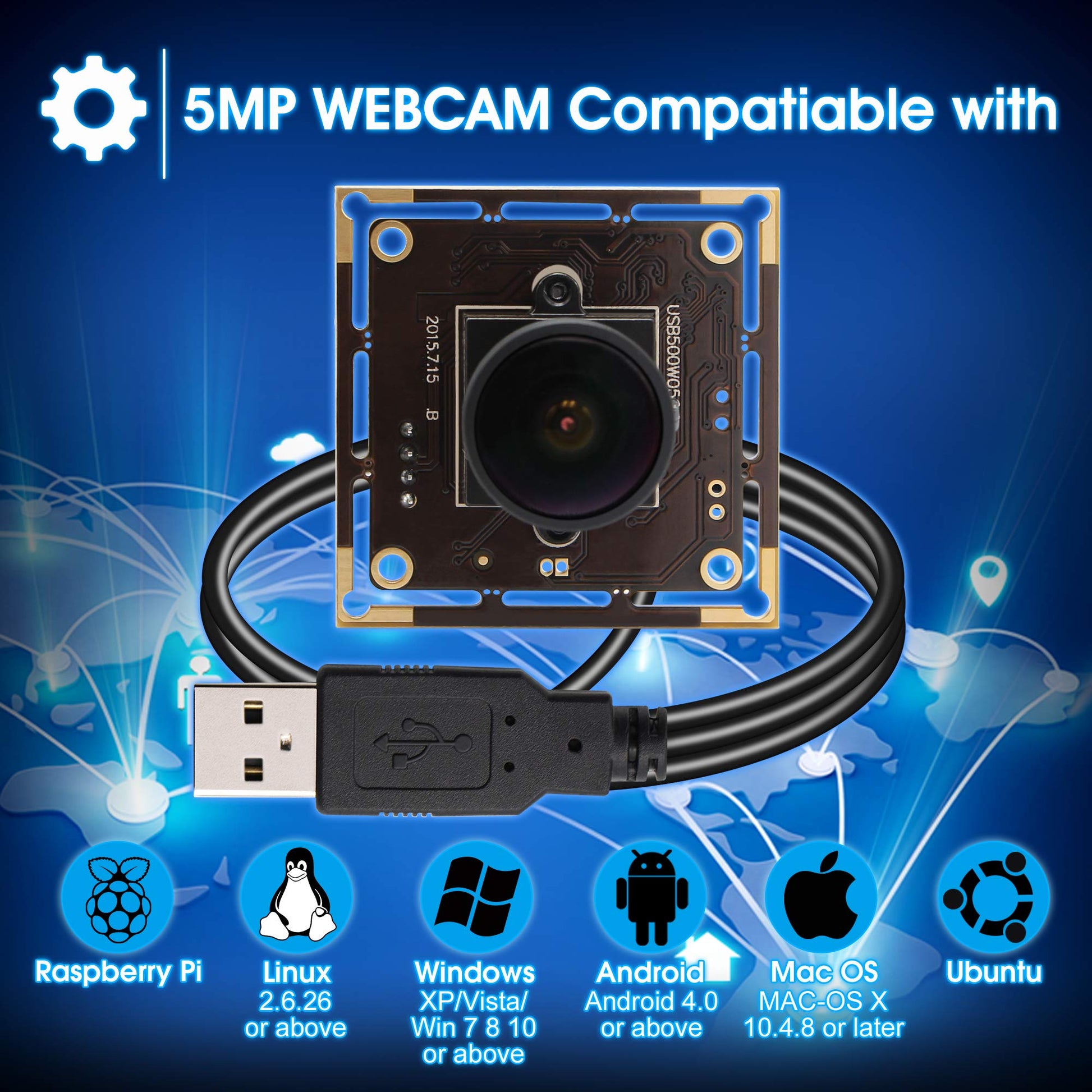

• High Compatible and Test Software：HD 5MP usb camera is high compatible with WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.

Binding: Electronics

model number: Camera USB-USB500W05G-BL170

Part Number: Camera USB-USB500W05G-BL170

Details: Specification:
Resolution: 5Megapixel 2592X1944
Sensor: 1/2.5 inch Aptina MI5100 CMOS
5.0megapixel Max. 2592(H)x1944(V)pixels

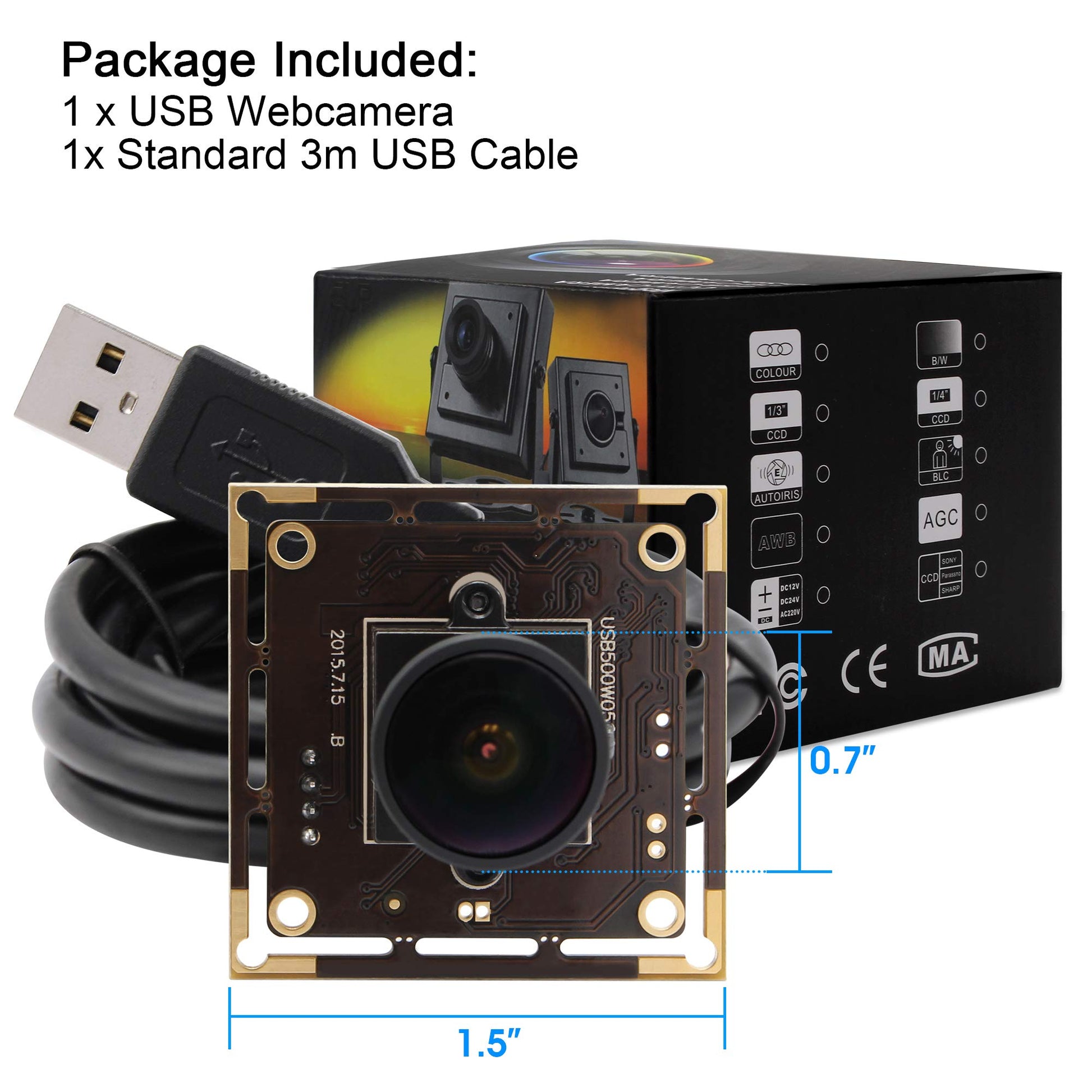

Size: 38X38mm, 32x32mm
Voltage: DC 5V
Work temperature:-20~70 DEGREES
Current： 150mA
Picture format： MJPEG or YUY2 optional
USB Protocal： USB2.0 HS/FS
Auto exposure AEC Support
Auto white blance AEB Support
Adjustable parameters：Brightness/Contrast/Color saturation /Definition/Gamma/WB

Performance:
2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG

Effective Pixels:
2592(H)x1944(V)pixels /2048 (H)x1536(V)pixels /1600(H)x1200(V)pixels /
1920(H)x1080(V) pixels/ 1280(H)x1024(V)pixels/1280(H)x720(V)pixels/
1024(H)x768(V)pixels/800(H)x600(V)pixels/640(H)x480(V)pixels
Support OS ："WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"

EAN: 0619317845183

Package Dimensions: 4.4 x 3.6 x 2.7 inches
